Kubernetes
One default mapping, two independent overrides, and a review of their effective values.
All three inputs are processed in this browser. No values are uploaded.
Output values are masked by default. Paths and keys remain visible; editors and replacement previews retain original input. Masked YAML is a review artifact.
Helm 3.19.0 · single chart · defaults → each override independently. Maps merge, lists replace; comparison lists match by index.
Per input: 200,000 characters, 20,000 nodes, depth 60. Report: 5,000 changes / 4 million characters. Worker: 5 seconds.
Enter configurations or run a comparison.
Helm Values Diff helps when removing a line from values.yaml does not remove the setting from the application. A value may return from chart defaults. Compare the two effective configurations, or switch to raw overrides when you need to review what the author actually declared.

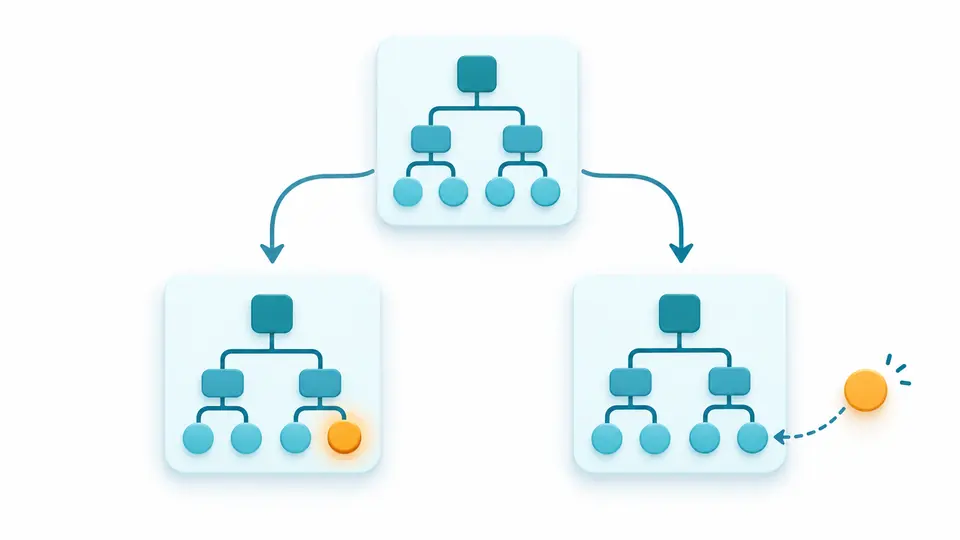

Helm Values Diff applies the same defaults separately to each version. Removing replicas from the new override restores the default count; it does not inherit the old override. This makes a values.yaml comparison useful before discussing a rollout.

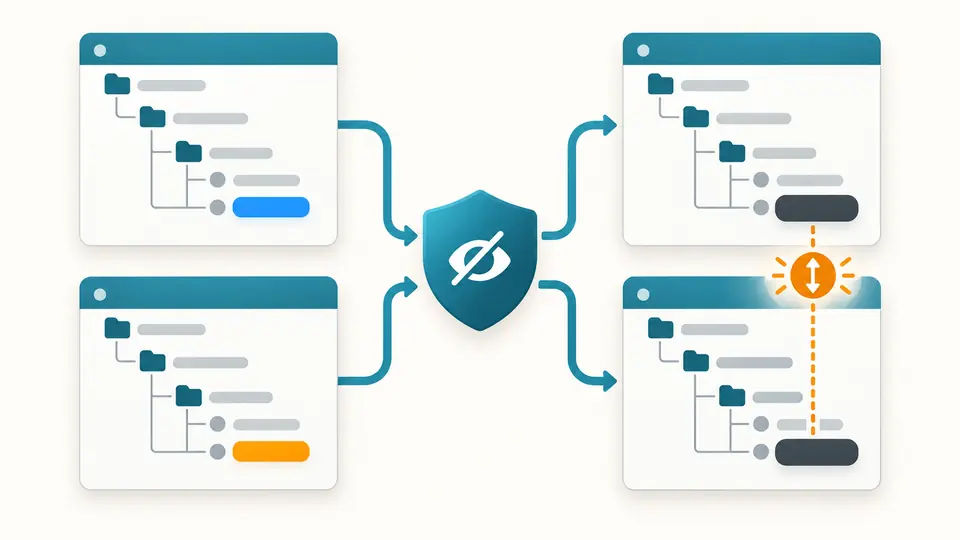

The comparison runs on actual values before masking. Two different passwords still produce a changed entry, even though their displayed placeholders match. Nested values in new objects and arrays are masked as well.
The left selector keeps three independent buffers. Put chart defaults in Defaults, then the two complete override mappings in Old and New. A blank buffer means an empty mapping. The new version is never layered on top of the old one.
Effective values is the default comparison. Raw overrides reveals declarations that may resolve to the same final value. The two merged views always show effective values, regardless of the comparison mode. Arrays replace during merge and compare by index afterward.
Automatic comparison waits 350 ms after editing. Turn it off to use Compare or Ctrl/Cmd+Enter. An input or option change disables stale exports. Copy and download follow the selected result view; replacement actions offer a preview and one Undo.
Mappings combine recursively; override scalars and whole lists take precedence. An empty mapping preserves default children, while an empty list replaces a populated default list. False, zero and an empty string remain real values.
Changes carry JSON Pointer paths, added/removed/changed counts, and before/after types. A missing value differs from null; a quoted number differs from a number. Escape slash as ~1 and tilde as ~0 when reading paths.
Structural comparison ignores comments and mapping order. It can compare the submitted overrides or their merged outcomes. List order remains meaningful, and a new list element can shift several index-based differences.
The JSON report includes the model, comparison mode, masking flag, all differences and both effective YAML documents. The YAML views export only the selected version. The first 50 changes are shown, with more available without truncating export.
Use this page for the values layer, then review rendered manifests with helm diff or your release workflow. An unchanged values report does not prove that templates, chart versions, cluster capabilities or the resulting resources are unchanged.
The environment override wins over the supplied defaults. Nested mappings retain default children not mentioned in the override. This page accepts one override per version; combine multiple files in your intended order before pasting them here.
Helm replaces the complete list at that key. It does not append items or match objects by name. The diff then compares the resulting lists by index, which is a review representation rather than a list-merging algorithm.
Set that key to null in the override. Omitting it instead restores the default. A null for a key absent from the default mapping is retained, so an added null and a deleted default key are different outcomes.
Yes. Leave masking enabled: the report retains the change and original type while replacing scalar contents. It also masks non-secret values. Inspect key names and paths before sharing, because those remain readable.
Have a values review case to report?
Use Helm Values Diff to separate an override edit from its effective result, then choose the report your reviewer needs.
